Red River Arenas Roping Arena and Riding Arena Layouts


100' X 200' ROPING ARENA w/o RETURN    |    100' X 200' ROPING ARENA w/ RETURN

150' X 250' TEAM ROPER    |    150' X 250' TEAM ROPER PLUS    |    150' X 250' TEAM ROPER PRO

150 x 270 WINNERS CHOICE    |    FULL RODEO ARENA    |    BUCKING ARENA

120' X 200' RIDING ARENA    |    120' X 200' TEAM PENNING ARENA    |    RANCH SORTING ARENA

40' X 300' CALF LANE w/o RETURN    |    70' X 240' CALF LANE w/ RETURN

Red River Arenas is Proud to be the Official Arena Choice of the Following:


http://www.actra.org


http://www.otrc.net


QUESTIONS YOU SHOULD ASK
Red River Arenas and/or Our Competitors
When Purchasing an Arena:

1.) What is the actual size of your arena?
Reason: Not all companies use the inside dimensions of the arena. Some companies use the outside dimensions that can include the roping boxes or return alley

2.) Are the boxes inside or outside of the arena?
Reason: If the boxes are on the inside of the arena this will shorten the run.

3.) How heavy, or how tall and long are the panels?
Reason: Make sure you are comparing items accurately. When asking you can question weight, or you can compare gauge. Know that the higher the number on the gauge the lighter the panel will be.

4.) Know the difference between painted steel, powder coated steel, and galvanized steel.

5.) Ask about the steer lead up to the chute and what comes with the arena packages.
Reason: Most standard arena packages come with panels behind the roping chute. Chute extensions have butt bars and sheet metal sides to keep cattle contained and ready for the next run.

6.) Do post come with the arena packages or will you need to provide them?
Reason: You cannot set up long runs of fence and keep them from falling over without some sort of support. No arena should ever be set up without setting post. To not put posts in your arena is dangerous for spectators and livestock.

7.) Details of delivery and setup.
Reason: You need to know what method the company you purchased your arena from will be delivering ie- 18 Wheeler, gooseneck, or common carrier, so you can know if they have the ability to get into your property.

8.) Who is responsible for unloading the truck?
Reason: If it is your responsibility then you need to be prepared with help and equipment to unload.

The Difference Between "Painting/Powder Coating" and "Galvanized"

Painting/Powder Coating - An organic topping that provides barrier-layer protection. As long as there is no mechanical abrasion of the finish, the painting/powder coating can probably last as long as the galvanizing; but once the coating is damaged and breached and the steel exposed, that exposed steel will rapidly rust.

Galvanized - Galvanization is the process of applying a protective zinc coating to steel or iron, in order to prevent rusting. This means that even if the coating is scratched or abraded, the exposed steel will still be protected from corrosion. - an advantage absent from paint, enamel, powder coating and other methods. Galvanizing is also favored as a means of protective coating because of its low cost, ease of application and comparatively long maintenance-free service life.

Lifespan Maintenance Comparison Animation


Information to provide Red River Arenas


What type of arena are you looking to purchase?

How many steers do you rope with on a regular basis?

Are you planning to host any events in your arena?

Do you plan on having rough stock in your arena?

Will this be primarily a family facility, or a group facility?

What kind of post will you be using?

How many people will be roping in this arena?

Red River specializes in roping arenas, but we also have horse arenas for other horse disciplines. Whether it is a roping arena, riding arena, or rough stock rodeo arena, with your design or ours we can fill all of your needs of a portable rodeo riding arena. Red River Portable Arenas has the best round pen, rodeo and riding arena layouts waiting for you to choose from. In addition, we can build custom sized portable rodeo and riding arenas if you do not see a diagram that fits your needs.

Shipping Zones

Arena prices DO NOT include shipping
Here are the average shipping prices for
arena packages by zone
Call 1-800-343-1026 for your shipping price.

Average Shipping Zone 1 Zone 2 Zone 3
Arena Packages $250-$750 $750-$2,200 $2,200-3,500

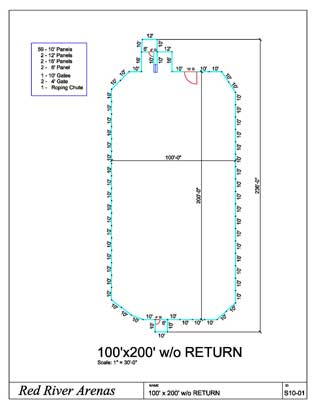

100' X 200' Roping Arena without Return

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


100' X 200' Roping Arena without Return


Description 100'x200'
without Return		 Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $5,129.00 $4,806.00
P1300 Series Panels
(Click Here to View Panel Details)		 $5,586.00 $5,243.00

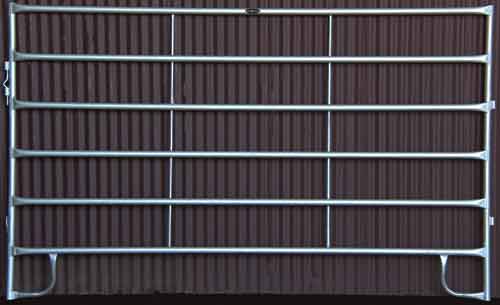

P1300+ Series Panels
(Click Here to View Panel Details)		 $6,071.00 $5,751.00
P100 Series Panels
(Click Here to View Panel Details)		 $7,521.00 $6,960.00
P200 Series Panels
(Click Here to View Panel Details)		 $8,445.00 $7,930.00
P300 Series Panels
(Click Here to View Panel Details)		 $13,145.00

ALL GALVANIZED ARENA

Back to Top

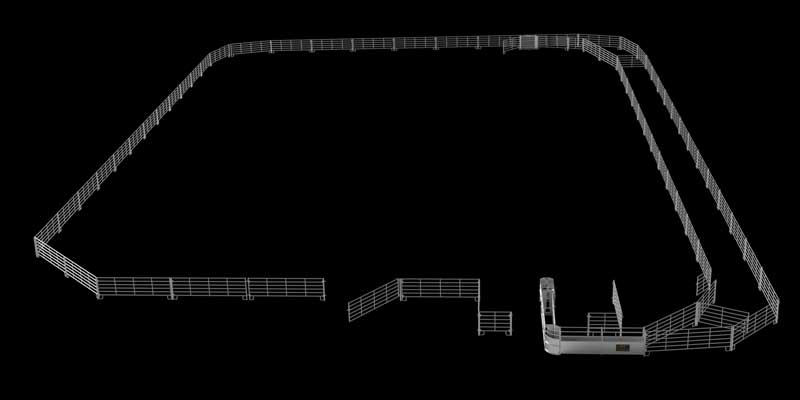

100' X 200' Roping Arena with Return

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)



100' X 200' Roping Arena with Return


Description 100'x200'
with Return		 Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $6,949.00 $6,549.00
P1300 Series Panels
(Click Here to View Panel Details)		 $7,560.00 $7,141.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $8,199.00 $7,826.00
P100 Series Panels
(Click Here to View Panel Details)		 $10,133.00 $9,431.00
P200 Series Panels
(Click Here to View Panel Details)		 $11,365.00 $10,755.00
P300 Series Panels
(Click Here to View Panel Details)		 $17,605.00

ALL GALVANIZED ARENA

Back to Top



150' x 250' Roping Arena with Return
Team Roper

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


150' X 250' Roping Arena with Return


Description 150'x250' Team Roper w/ Return Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $8,324.00 $7,729.00
P1300 Series Panels
(Click Here to View Panel Details)		 $9,110.00 $8,481.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $9,924.00 $9,346.00
P100 Series Panels
(Click Here to View Panel Details)		 $12,408.00 $11,371.00
P200 Series Panels
(Click Here to View Panel Details)		 $13,990.00 $13,055.00
P300 Series Panels
(Click Here to View Panel Details)		 $21,980.00

ALL GALVANIZED ARENA

Back to Top



150' x 250' Team Roper Plus

Team Roper Plus Team Roper PLUS
(Adobe Acrobat Reader Required)


150' X 250' Team Roper Plus


Description 150'x250' Team Roper Plus Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $10,771.00 $10,317.00
P1300 Series Panels
(Click Here to View Panel Details)		 $11,450.00 $10,977.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $12,379.00 $11,966.00
P100 Series Panels
(Click Here to View Panel Details)		 $14,263.00 $13,463.00
P200 Series Panels
(Click Here to View Panel Details)		 $15,656.00 $14,976.00
P300 Series Panels
(Click Here to View Panel Details)		 $22,661.00

ALL GALVANIZED ARENA

Back to Top



150' x 250' Team Roper Pro

Team Roper Pro Team Roper Pro
(Adobe Acrobat Reader Required)


150' X 250' Team Roper Pro


Description 150'x250' Team Roper Pro Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $11,446.00 $10,875.00
P1300 Series Panels
(Click Here to View Panel Details)		 $12,170.00 $11,563.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $13,152.00 $12,586.00
P100 Series Panels
(Click Here to View Panel Details)		 $15,152.00 $14,150.00
P200 Series Panels
(Click Here to View Panel Details)		 $16,631.00 $15,721.00
P300 Series Panels
(Click Here to View Panel Details)		 $24,056.00

ALL GALVANIZED ARENA

Back to Top



150' x 270' Roping Arena with Return
Winner's Choice

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


150' X 270' Roping Arena with Return


Description 150'x270' Winners Choice Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $11,490.00 $10,821.00
P1300 Series Panels
(Click Here to View Panel Details)		 $11,916.00 $11,608.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $13,142.00 $12,489.00
P100 Series Panels
(Click Here to View Panel Details)		 $15,738.00 $14,573.00
P200 Series Panels
(Click Here to View Panel Details)		 $17,390.00 $16,295.00
P300 Series Panels
(Click Here to View Panel Details)		 $25,650.00

ALL GALVANIZED ARENA

Back to Top

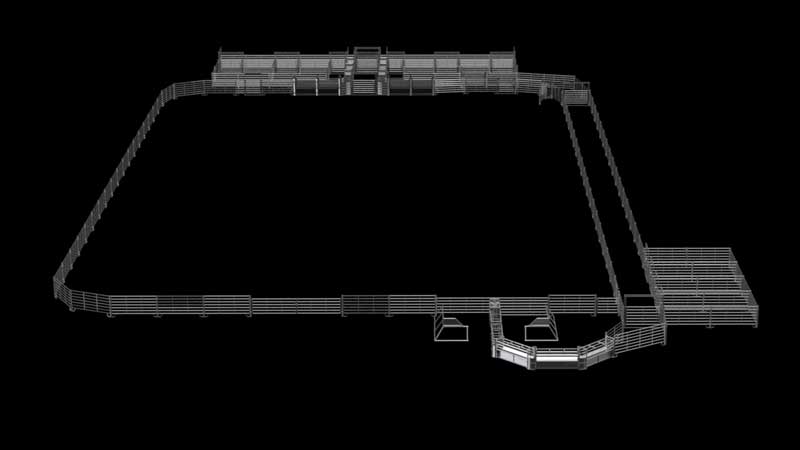

Full Rodeo Arena

Placeholder Image
(Adobe Acrobat Reader Required)

Full Rodeo Arena Pricing
ALL GALVANIZED ARENA
$58,566.00

Red River's all newly designed ALL GALVANIZED FULL RODEO ARENA comes complete with everything you need to start producing your own events. The full rodeo arena features all of your Bucking and Roping Chutes, Bucking Chute Pads, Heavy Duty Back Pens, 50' of Sheeted Roping Chute Extensions, Professional Heavy Duty Boxes, Sorting Pens, Posts with Clamps, Rough Stock and Roping Stripping Chutes, and all of your Panels and Gates.



Back to Top

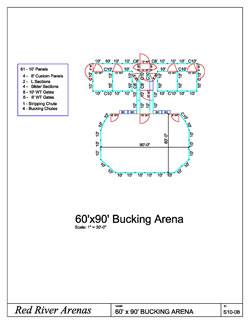

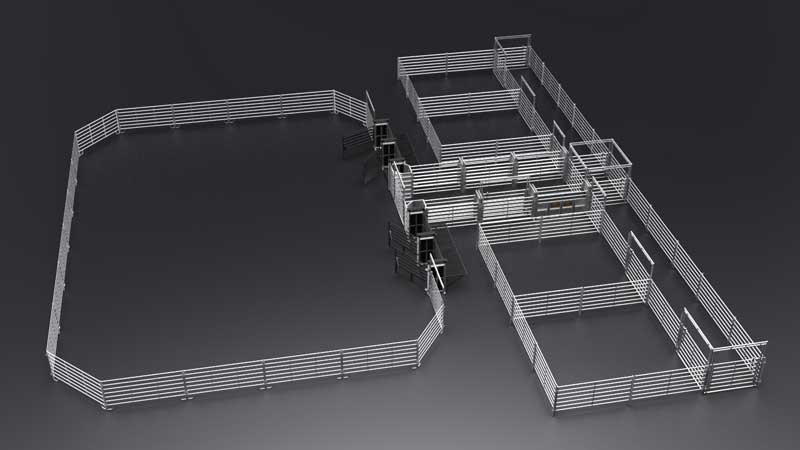

60' x 90' Bucking Arena

Placeholder Image
(Adobe Acrobat Reader Required)



$35,000.00

This arena is filled with P310 style panels only
See panel page for more info on this panel

ALL GALVANIZED ARENA

Back to Top

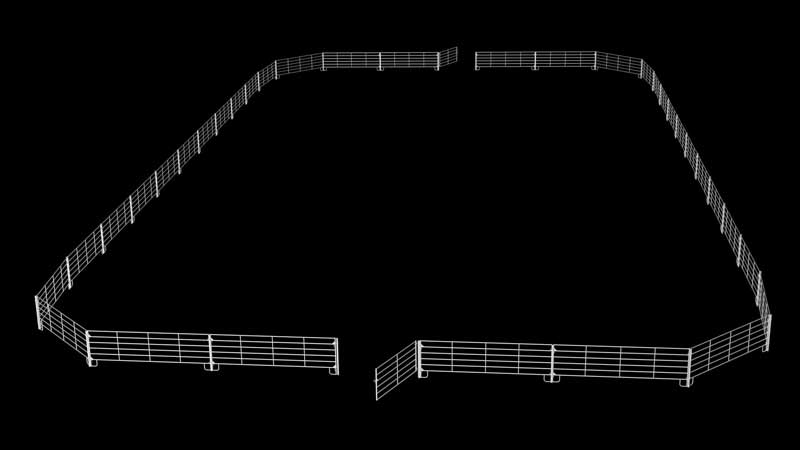

120' x 200' Riding Arena

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


120' X 200' Riding Arena

Description 120'x200' Riding Arena Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $3,390.00 $3,032.00
P1300 Series Panels
(Click Here to View Panel Details)		 $3,796.00 $3,416.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $4,202.00 $3,848.00
P100 Series Panels
(Click Here to View Panel Details)		 $5,478.00 $4,856.00
P200 Series Panels
(Click Here to View Panel Details)		 $6,290.00 $5,720.00
P300 Series Panels
(Click Here to View Panel Details)		 $10,350.00

ALL GALVANIZED ARENA

Back to Top

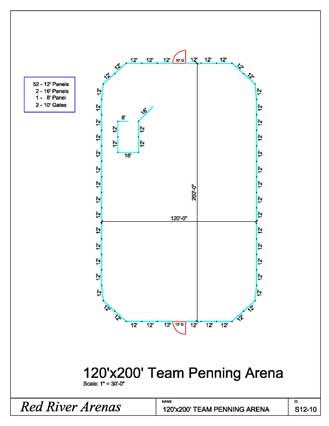

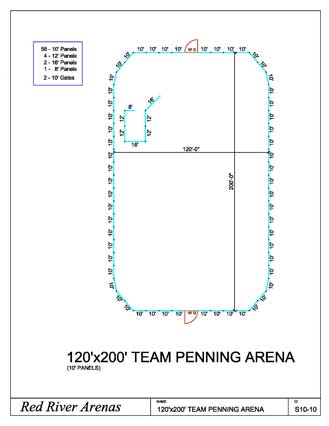

120' x 200' Team Penning Arena

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


120' x 200' Team Penning Arena

Description 120'x200' Team Penning Arena Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $3,847.00 $3,489.00
P1300 Series Panels
(Click Here to View Panel Details)		 $4,306.00 $3,926.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $4,795.00 $4,441.00
P100 Series Panels
(Click Here to View Panel Details)		 $6,243.00 $5,621.00
P200 Series Panels
(Click Here to View Panel Details)		 $7,175.00 $6,605.00
P300 Series Panels
(Click Here to View Panel Details)		 $11,905.00

ALL GALVANIZED ARENA

Back to Top

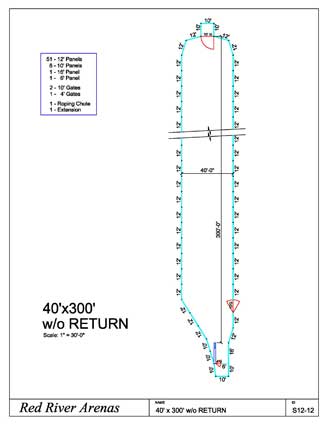

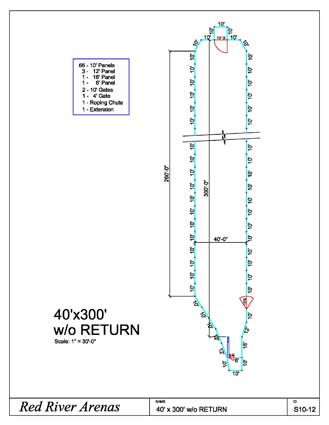

40' x 300' Calf Lane without Return

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


40' x 300' Calf Lane without Return

Description 40'x300'
Calf Lane without Return		 Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $4,940.00 $4,582.00
P1300 Series Panels
(Click Here to View Panel Details)		 $5,440.000 $5,190.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $5,956.00 $5,732.00
P100 Series Panels
(Click Here to View Panel Details)		 $7,526.00 $7,034.00
P200 Series Panels
(Click Here to View Panel Details)		 $8,835.00 $8,095.00
P300 Series Panels
(Click Here to View Panel Details)		 $13,630.00

ALL GALVANIZED ARENA

Back to Top

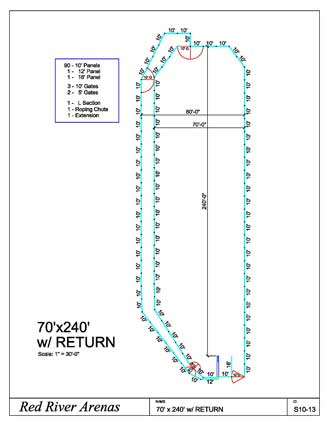

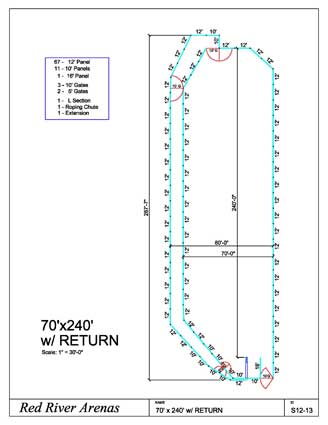

70' x 240' Calf Lane with Return

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)


70' x 240' Calf Lane with Return

Description 70'x240'
Calf Lane with Return		 Using 10' Panels Using 12' Panels
P1200B or 1200A Series Panels
(Click Here to View Panel Details)		 $6,387.00 $5,936.00
P1300 Series Panels
(Click Here to View Panel Details)		 $7,032.00 $6,556.00
P1300+ Series Panels
(Click Here to View Panel Details)		 $7,691.00 $7,256.00
P100 Series Panels
(Click Here to View Panel Details)		 $9,725.00 $8,938.00
P200 Series Panels
(Click Here to View Panel Details)		 $11,020.00 $10,315.00
P300 Series Panels
(Click Here to View Panel Details)		 $17,535.00

ALL GALVANIZED ARENA

Back to Top

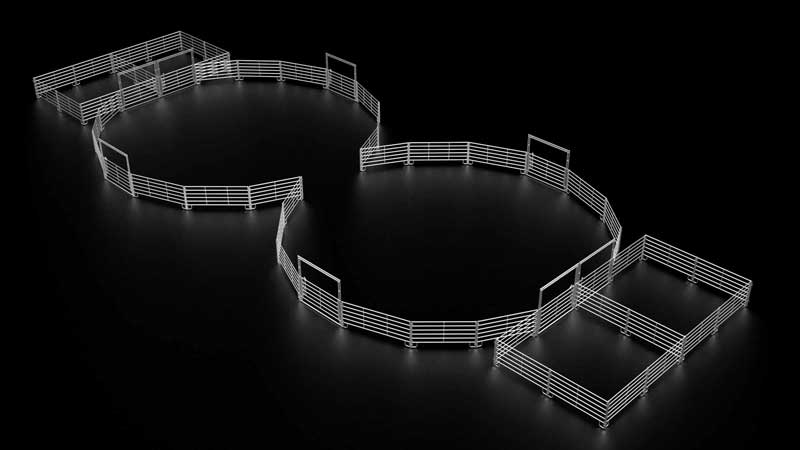

Ranch Sorting Arenas

Placeholder Image Placeholder Image
(Adobe Acrobat Reader Required)

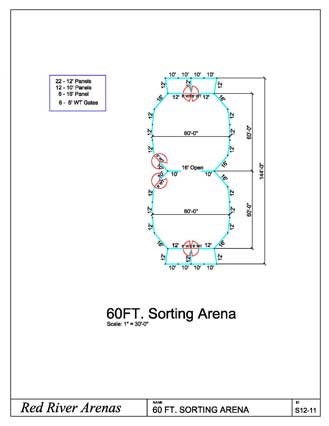

60FT Sorting Pen

Sorting Practice Pen


Ranch Sorting Packages
including shipping by zone

Description

ZONE 1

ZONE 2

ZONE 3
NSCHA 60FT Sorting Pen w/
P100 Series Panels
(Click Here to View Panel Details)		 $5,484.00 $5,734.00 $5,984.00
NSCHA 60FT Sorting Pen w/
P200 Series Panels
(Click Here to View Panel Details)		 $6,300.00 $6,550.00 $6,800.00

Sorting Practice Pen w/
P100 Series Panels
(Click Here to View Panel Details)		 $3,280.00 $3,530.00 $3,780.00
Sorting Practice Pen w/
P200 Series Panels
(Click Here to View Panel Details)		 $3,900.00 $4,150.00 $4,400.00

ALL GALVANIZED ARENA

Back to Top
